MEASURING & INSTALLING

We've made DIY possible from start to finish with our How-to guides to measuring and installing your custom blinds and shades.

HOW TO MEASURE

INSIDE MOUNT

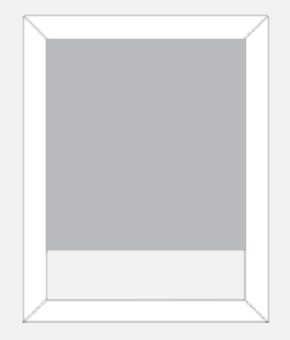

Inside Mount:

  • Installed inside the window frame.
  • Provides a clean and streamlined look.
  • Requires precise measurements for a proper fit.
  • Allows the blinds to fit snugly within the frame.

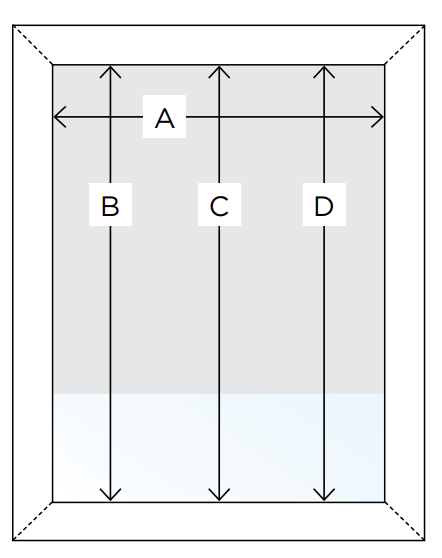

Measuring Custom Blinds for Inside Mount:

  1. Gather the necessary tools you'll need: a steel measuring tape, a pencil, and paper.
  2. Measure the width at the top of the window frame (A). Record the width.
  3. Measure the height at the left (B), middle (C), and right (D) of the window frame. Record the longest height measurement.
  4. Do not make any deductions to your measurements when entering them

OUTSIDE MOUNT

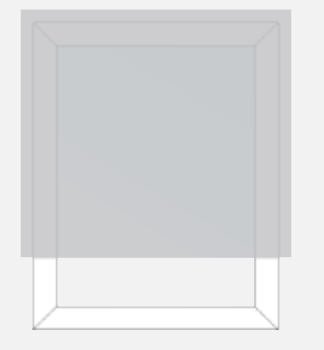

Outside Mount:

  • Installed outside the window frame.
  • Covers a larger area, including the window frame.
  • Provides better light blockage and privacy.
  • Doesn't require precise measurements but allows for customization in size.
  1. Gather the tools you'll need: a steel measuring tape, a pencil, and paper.
  2. Measure the width (A) where you want the blinds to cover the window frame. Add extra width based on your preference for coverage.
  3. Measure the height (B) from the top of the window frame to where you want the blinds to hang. Include extra height for better coverage.

TIP: Add extra inches to both the width and height for better light blockage and privacy.

HOW TO INSTALL

ROLLER / SOLAR SHADES

Roller Shades - Open Roll Click here to download pdf

Roller Shades - Cassette Click here to download pdf

ALTERNATING SHADES

Alternating Shades - Cassette Click here to download pdf

SHEER SHADES

CELLULAR SHADES

Cellular Shades - Click here to download pdf

WOOD/FAUX WOOD BLINDS

Wood and Faux Wood Blinds - Click here to download pdf

PANEL TRACK BLINDS
